Retinal Projection Magnifier "RETISSA ON HAND"

1. Innovative Solutions for the Visually Impaired

■ About the Retinal Projection Magnifier RETISSA ON HAND

 Support technologies for the visually impaired are constantly evolving, and the retinal projection magnifier "RETISSA ON HAND" represents a revolutionary advancement in this field. This device offers a concrete solution to promote the independence of individuals with visual impairments, alleviating many of the challenges they face in their daily lives.

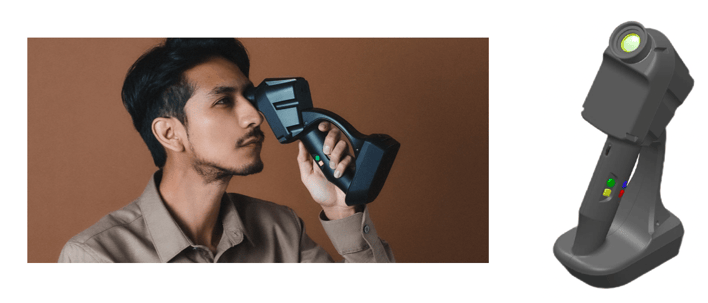

The "RETISSA ON HAND" is a retinal projection magnifier that directly projects digital images captured by its built-in camera onto the retina. This handheld visual aid device can be used to alleviate difficulties in seeing both near and far objects, without being affected by the user's visual acuity, thereby improving daily life. The device can project images with a horizontal field of view of 60 degrees and magnify up to seven times, featuring image processing functions such as brightness and contrast adjustment, black-and-white inversion, and grayscale inversion. Additionally, it has an image pause function.

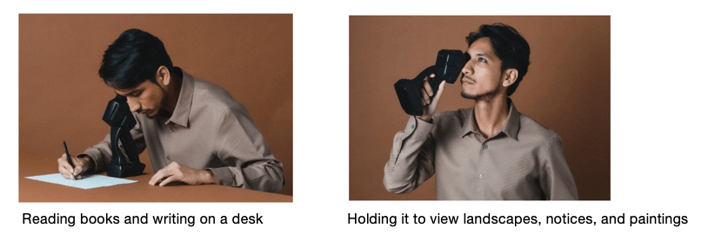

It can be utilized in various scenarios, such as viewing outdoor landscapes or exhibits in museums and art galleries. With its all-in-one design incorporating a built-in battery, it is ready for use with just a flip of a switch. Being handheld, it requires no fitting, making it easy to carry and use on the go.

2. Product Overview of RETISSA ON HAND

■ Technical Features of the Retinal Projection Magnifier

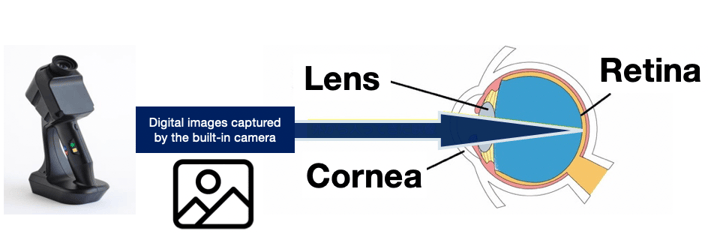

RETISSA ON HAND utilizes advanced retinal projection technology. This technology directly projects digital images captured by the built-in camera onto the user's retina, providing a high-resolution and clear visual experience. The images are adjusted in real time, and the brightness, contrast, and magnification can be customized according to the user's needs. The device is lightweight and portable.

This technology uses a laser light source, and the images are adjusted according to the user's eye movements.

3. Product Specifications of RETISSA ON HAND

■ Main Product Specifications

(Projection Unit)

•Projection Method            :Projection Method: Laser Retinal Scanning

•Light Source        :Light Source: Semiconductor Laser (R: 638nm, G: 520nm, B: 450nm)

•Horizontal Field of View    :Horizontal Field of View: Approximately 60 degrees

•Aspect Ratio         :Aspect Ratio: 16:9

•Resolution          :Resolution: Equivalent to 720P (1280×720)

•Color Tone          :Color Tone: 8-bit Full Color (256 gradations)

•Refresh Rate         :Refresh Rate: Approximately 60Hz



(Camera Unit)

•Image Sensor                        :Image Sensor: 13MP CMOS Sensor

•Field of View                          :Field of View: Horizontal 13 degrees to 52 degrees

•Minimum Focusing Distance  :Minimum Focusing Distance: 10cm

•Digital Zoom:Digital Zoom     : 1x to 7x



(Power)

•Power Input                             :Power Input: DC 5V (Micro USB port)

•Rating                                      :5V/2A

•Battery Capacity                      :Battery Capacity: 3,880mAh

•Charging TimeCharging Time  :Approximately 4 hours (varies with environment and usage)

•Continuous Operating Time     :Continuous Operating Time: Approximately 2 hours
                                                      (varies with environment and
usage)

•AC Adapter                               :AC Adapter: AC Input: 100~240V 50/60Hz, DC Output: 5V 2A
                                                      (Micro USB port)



(Specifications)

Size                                            :80mm(W)×263mm(H)×150mm(D)(excluding the largest protrusion)

                                                       Weight: Approximately 500g





Price                    650,000 JPY

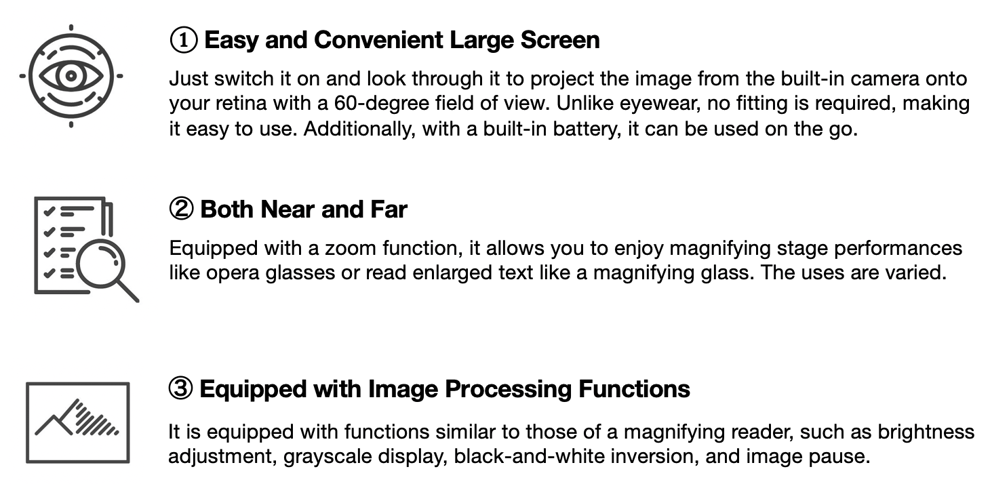

4.Three Key Features of RETISSA ON HAND

■ Three Key Features

5. RETISSA ON HAND Compliant with the Reading Barrier-Free Act

■ Promotion of Visual Support Devices and the Reading Barrier-Free Act

This handheld visual support device allows for easy use of retinal projection, unaffected by visual acuity, to alleviate difficulty in seeing both near and distant objects, thereby aiming to improve the quality of daily life. Additionally, this product complies with the "Reading Barrier-Free Act," promoting its use in public institutions such as libraries and schools.

The "Reading Barrier-Free Act," enacted on June 28, 2019, in Japan, aims to improve the reading environment so that all individuals, including those with visual impairments, can benefit from the culture of written and printed text. This law applies to everyone, regardless of whether they have a disability.

6. RETISSA ON HAND: An Innovative Solution for Diabetic Retinopathy with Retinal Projection Technology

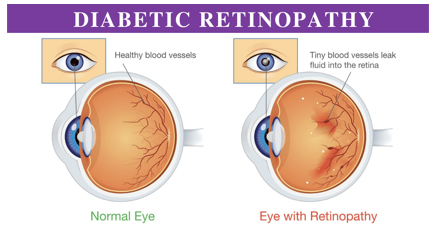

■ The Increase in Vision Impairments Due to Diabetes and Its Impact

Diabetes is on the rise worldwide, and this chronic disease is known to cause vision impairments in the form of diabetic retinopathy. Diabetic retinopathy affects approximately 35% of diabetes patients, and if not properly treated, it significantly increases the risk of blindness. Such vision impairments have severe impacts on the daily lives of patients, leading to a decline in their quality of independent living.

■ The Current State of Global Diabetes Incidence Rates and Vision Impairments

According to the World Health Organization (WHO), approximately 8.5% of adults worldwide have diabetes, and this number is expected to increase further by 2030. In developing countries, in particular, inadequate prevention and management of diabetes are leading to an increase in the number of people with vision impairments. This situation represents a significant public health challenge, highlighting the need for effective treatment and support systems.

■ Reasons Why Retinal Projection Technology Is a Solution

Retinal projection technology offers an innovative solution specifically designed for vision impairments caused by diabetes. By projecting high-resolution images directly onto the retina, this technology provides clear visual information that conventional visual support devices cannot achieve. The retinal projection magnifier enables users to obtain the necessary information even as their vision deteriorates, directly contributing to the independence and quality of daily life for diabetic patients. This technology brings new hope to diabetic patients with vision impairments, providing them with the means to lead more fulfilling lives.

7. Market Analysis of RETISSA ON HAND (Middle East)

■ Market Analysis: Overview of the Target Market (Dubai, Saudi Arabia)

Dubai and Saudi Arabia are ideal markets for the introduction of retinal projection magnifiers, given their rapidly developing healthcare infrastructure and high incidence of diabetes. These countries have robust economic capabilities and a strong governmental commitment to investing in health. They also show a keen interest in the latest advancements in medical technology. Saudi Arabia, in particular, is focusing on modernizing and enhancing the accessibility of its healthcare sector as part of the Vision 2030 program.

■ Market Potential for Elderly and Diabetic Patients

In the Middle East, the population is aging, and diabetes significantly affects a large proportion of the adult population. In Dubai and Saudi Arabia, the number of people with vision impairments due to diabetes is steadily increasing, making it difficult for them to access reading materials and everyday visual information. Against this backdrop, retinal projection magnifiers are considered to have significant market potential, particularly for this demographic.

8. Feedback from Patients and Healthcare Providers

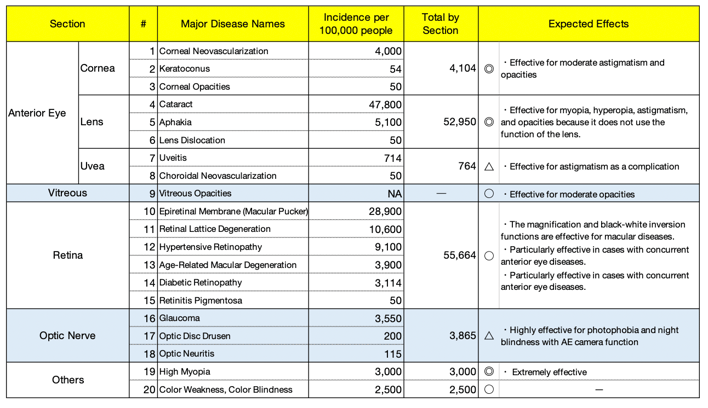

■ Application Scope and User Forecast for Retinal Projection Magnifiers

Retinal projection magnifiers show great potential for addressing a wide range of visual impairments affecting the anterior eye, lens, vitreous, retina, and optic nerve. They are particularly effective for moderate astigmatism, opacities, macular diseases, and photophobia. These devices are expected to become transformative tools in the field of visual rehabilitation.

9. Conclusion

■ Product Summary and Market Position

The retinal projection magnifier is an innovative visual aid device that can project images directly onto the retina, unaffected by visual acuity. This product serves as a crucial tool for improving the quality of daily life for many individuals facing visual challenges, including the visually impaired, the elderly, and diabetic patients. Particularly for those with vision impairments caused by conditions such as diabetic retinopathy, this device aids in reading and environmental awareness, providing valuable support for an independent lifestyle.

■ Future Prospects and Development Plans

In the future, we will continue to expand the functionalities of our retinal projection magnifier to meet the diverse needs of our users. Specifically, we plan to further simplify the user interface, enhance image projection quality, and support multiple languages to cater to various markets worldwide. Additionally, by incorporating new medical technologies and artificial intelligence (AI), we aim to increase the device's accuracy and provide more personalized visual support.

Through these efforts, our goal is to establish our retinal projection magnifier as the market leader, serving as a crucial tool to help individuals with visual impairments overcome their daily challenges.
